ANSI 1.2kV 125A–250A Transformer Bushings
ANSI 1.2 kV transformer bushing series covering 125 A and 250 A ratings with pin, 1-hole, 2-hole and 4-hole terminal configurations.
Read More
ANSI 1.2kV 417A–1200A Transformer Bushings
ANSI 1.2 kV transformer bushing series covering 417 A to 1200 A with pin, head-pin and multi-hole terminal pad options.
Read More
ANSI 1.2kV 1400A–3150A High-Current Transformer Bushings
High-current ANSI 1.2 kV transformer bushing series for 1400 A to 3150 A, with 4-hole, 6-hole and high-hole-count terminal pad variants.
Read More

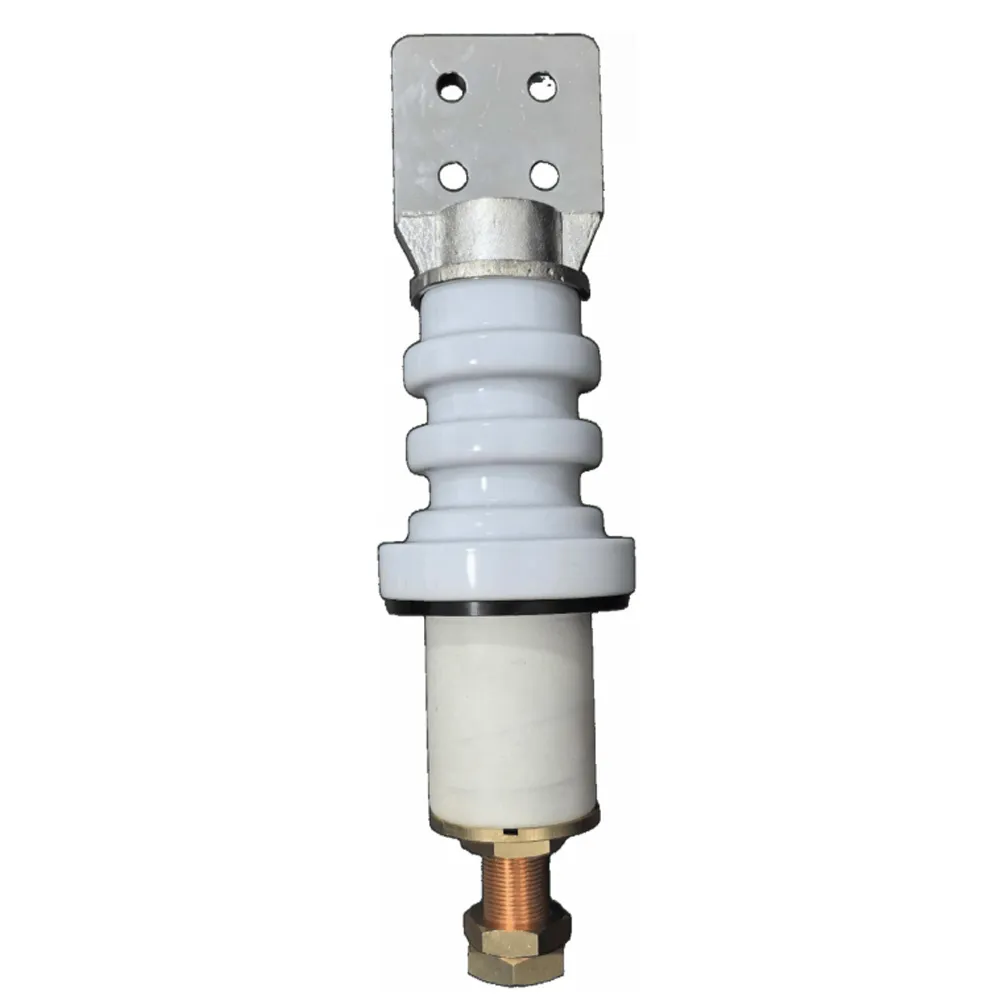

ANSI 5kV 630A–4000A Transformer Bushings
ANSI 5 kV transformer bushing series covering 630 A to 4000 A with 2-hole, 4-hole and 6-hole terminal pad configurations.
Read More
ANSI 10kV 800A–2000A Transformer Bushings
ANSI 10 kV transformer bushing series covering 800 A to 2000 A with 4-hole, 6-hole and 8-hole terminal pad options.
Read More
ANSI 15–34kV 55A Rod Terminal Transformer Bushings
ANSI 15 kV to 34 kV, 55 A transformer bushing series with rod terminals in Ø8.7 mm and Ø13 mm versions and multiple shed profiles.
Read More
ANSI 15–34kV 55A Terminal Pad Transformer Bushings
ANSI 15 kV to 34 kV, 55 A transformer bushings with 1-hole or 2-hole terminal pads and 4- to 17-shed profiles.
Read More
ANSI 15–25kV 125A–600A Terminal Pad Transformer Bushings
ANSI 15 kV and 25 kV transformer bushing series for 125 A to 600 A with 2-hole, 4-hole and 6-hole terminal pad variants.
Read More
ANSI 15–34kV 125A–417A 2-Hole Terminal Pad Transformer Bushings
ANSI 15 kV to 34 kV transformer bushing series with 2-hole terminal pads, 125 A to 417 A ratings and multiple shed profiles.
Read More

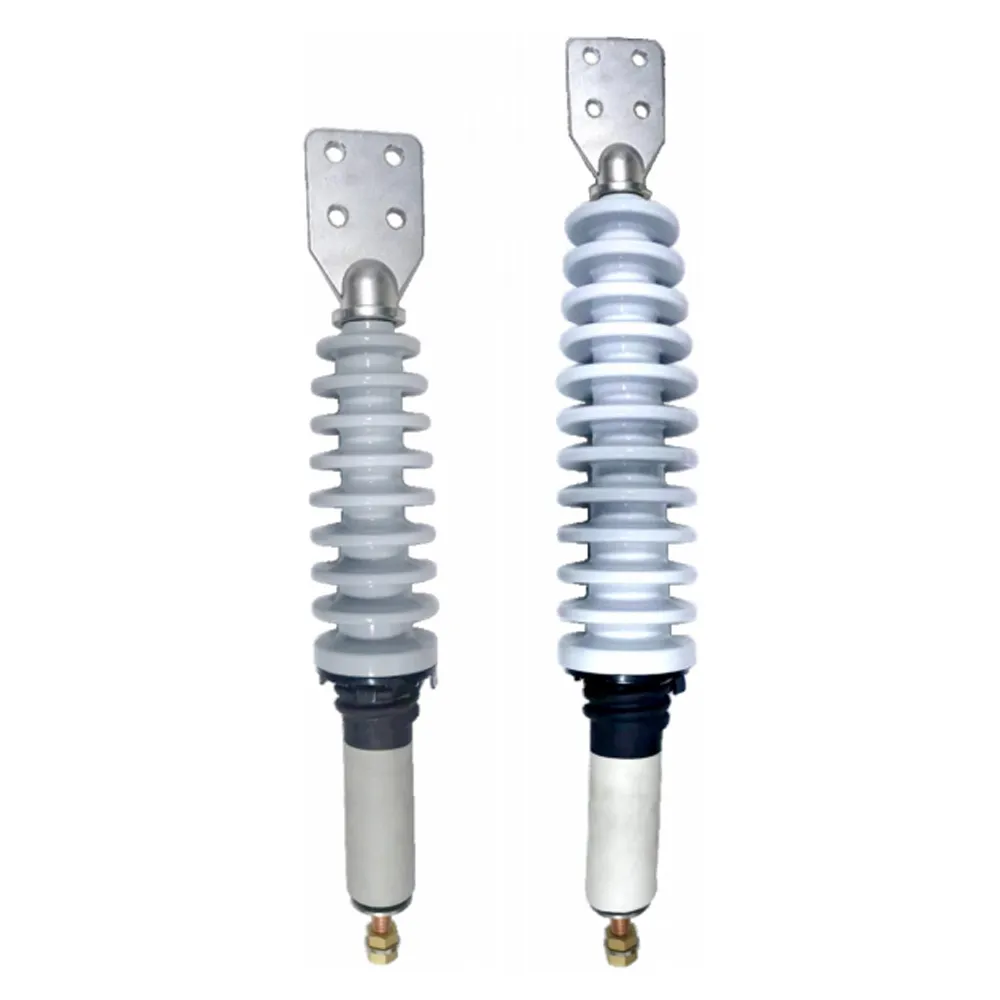

ANSI 15–34kV 125A–600A 4-Hole Terminal Pad Transformer Bushings
ANSI 15 kV to 34 kV transformer bushing series with 4-hole terminal pads and current ratings from 125 A to 600 A.
Read More
